GPU Reshape
Attach
Instrument
Investigate
Brought to you by Miguel Petersen, Avalanche Studios Group, and AMD.
![](png/avalanche_studios_group_hori_rgb_white_featured.png)
![](https://gpuopen.com/wp-content/uploads/2023/10/GPU_Reshape_Cover.png)
Meet GPU Reshape, a powerful tool that leverages on-the-fly instrumentation of GPU operations with instruction level validation of potentially undefined behavior.
Standalone desktop application, no integration required.
Download now - v0.9.0 Beta
This release includes the following features:
- Resource Bounds
Validation of resource read / write coordinates against its bounds. - Export Stability
Numeric stability validation of floating point exports (UAV writes, render targets, vertex exports), e.g. NaN / Inf. - Descriptor Validation
Validation of descriptors, potentially dynamically indexed. This includes undefined, mismatched (compile-time to runtime), out of bounds descriptor indexing, and missing table bindings. - Concurrency Validation
Validation of resource concurrency, i.e. single-producer or multiple-consumer, between queues and events. - Resource Initialization
Validation of resource initialization, ensures any read was preceded by a write. - Infinite Loops
Detection of infinite loops. Experimental.
Additionally, certain features, such as descriptor validation and loops, can safeguard a potentially erroneous operation, preventing undefined behaviour during instrumentation. This is especially useful if the error would result in a GPU crash, limiting the application’s ability to write out useful debug information of the issue.

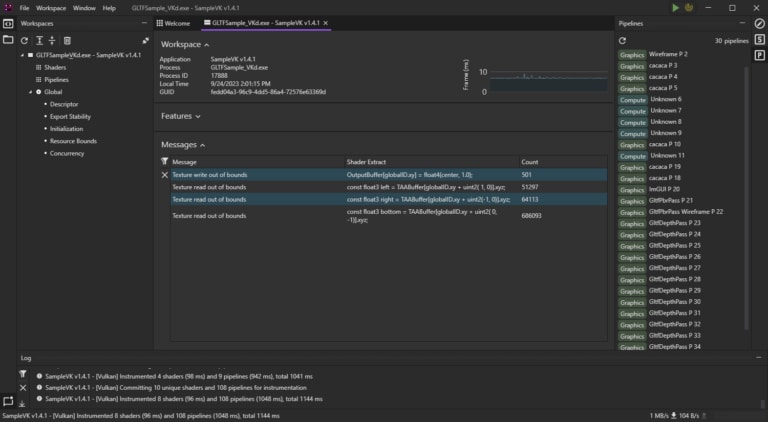

![GPU Reshape integration workspace](https://gpuopen.com/wp-content/uploads/2023/10/GPUReshape_IntegrationWorkspace-768x422.png)
Introducing GPU Reshape – shader instrumentation for everyone
GPU Reshape brings powerful features typical of CPU tooling to the GPU, providing validation of dynamic behaviour. Read on for all of the details.
Benefits
Instrument and validate your applications, track down issues to the exact line of source code, and determine exactly what went wrong.
Out of the box usage requires no integration, and can be done in just a few clicks, all at interactive frame rates.
GPU Reshape supports both DirectX® 12 and Vulkan®.
Attach

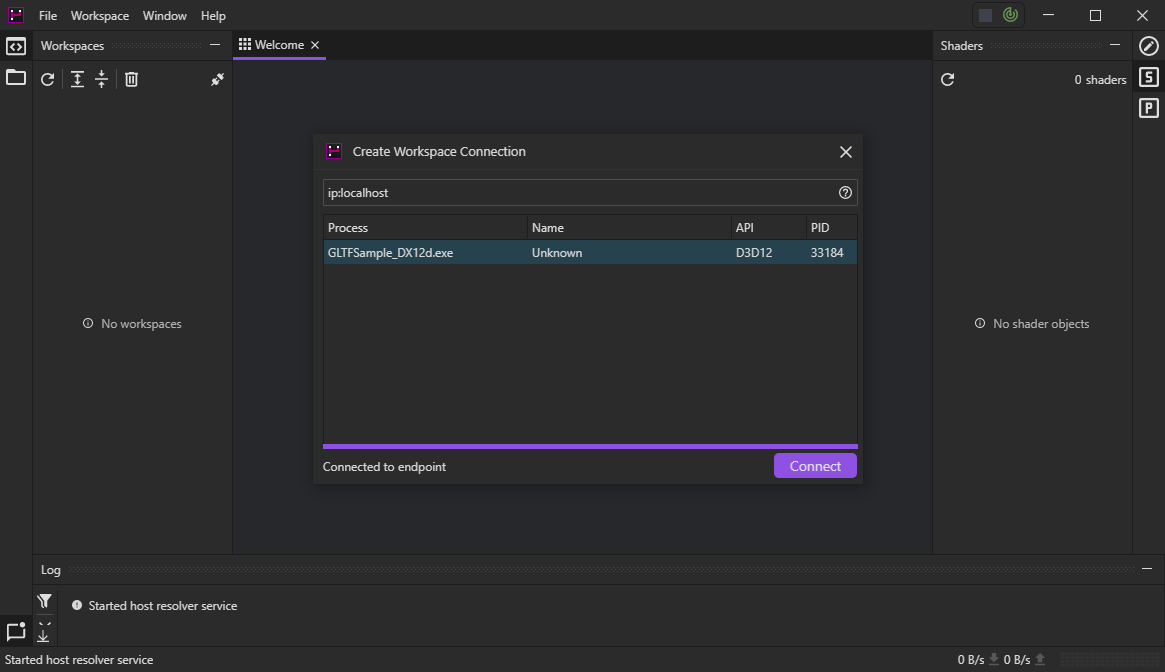

Attach to running applications, potentially across network boundaries, to start instrumenting your applications.

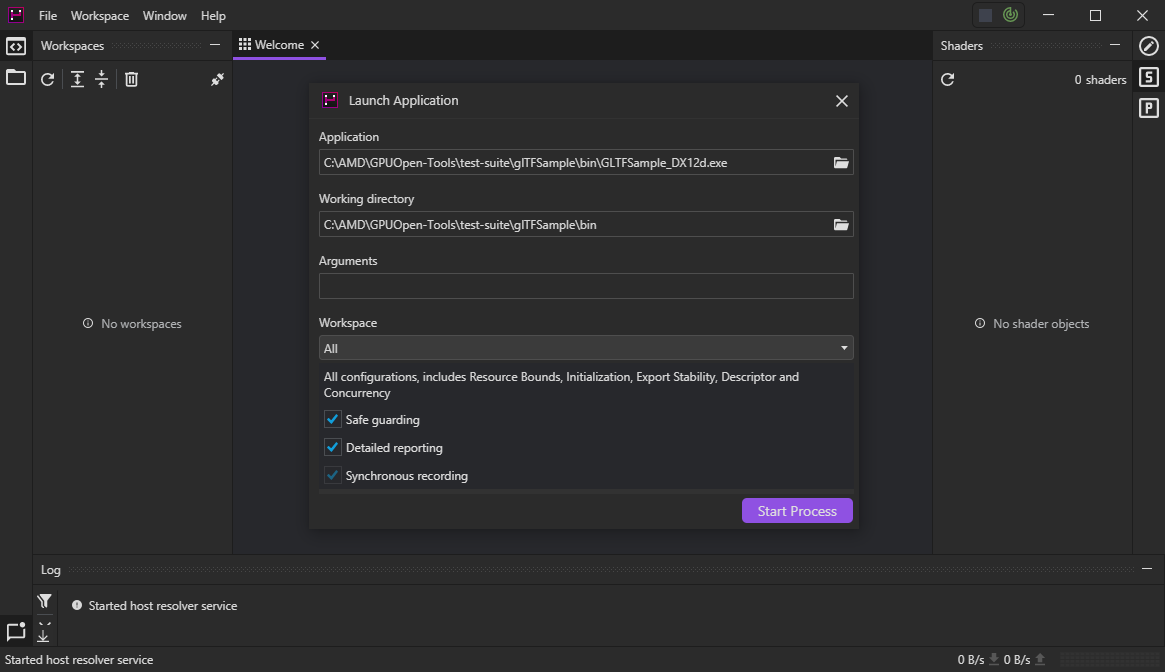

Applications may also be launched from the toolset with the desired feature set.
![](https://gpuopen.com/wp-content/uploads/2023/10/ProductConnectCompact.png)
![](https://gpuopen.com/wp-content/uploads/2023/10/ProductLaunchCompact.png)
Instrument
Instrument entire applications in just a few clicks.
Instrumentation may be changed on the fly, and can be specialized on a per-shader and pipeline basis. Customize your workspace as needed.
![](https://gpuopen.com/wp-content/uploads/2023/10/ProductInstrumentation.png)
Investigate

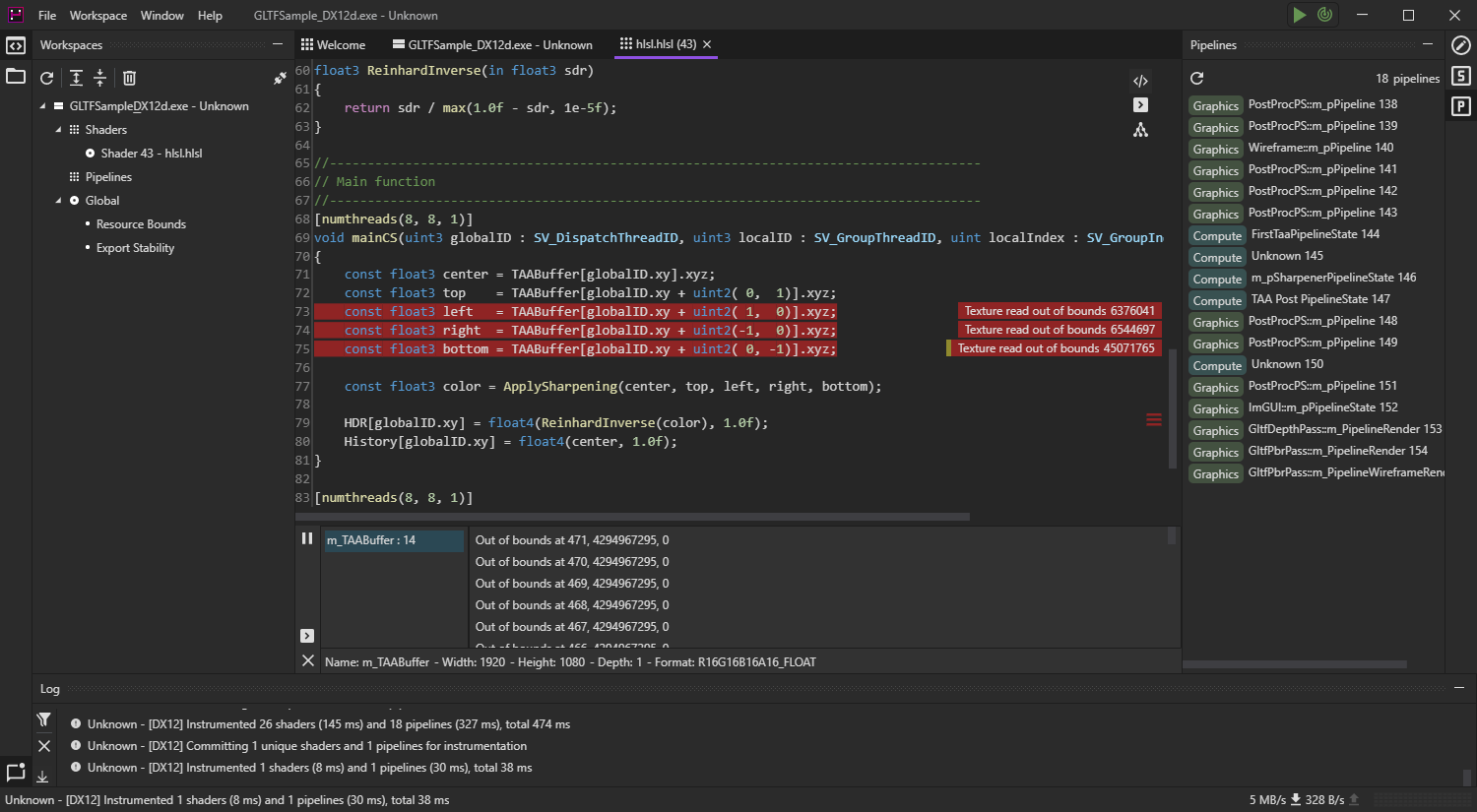

Investigate validation errors on the exact line of source code, with, for example, the resource and coordinates accessed.
GPU Reshape is agnostic to the front-end language, such as HLSL or GLSL, as it functions solely on the instructions and associated symbols.
![](https://gpuopen.com/wp-content/uploads/2023/10/ProductInvestigate.png)
Requirements
Software
Driver
- For AMD GPUs: latest AMD Software: Adrenalin Edition™ application software driver (minimum version 23.10.2)
Supported GPUs
- All vendors supported
Supported graphics APIs
- DirectX® 12
- Vulkan®
Supported IRs
- SPIR-V
- DXIL
- DXBC (experimental)
Supported OSs
- Windows® 10
- Windows® 11
Linux® support is a planned addition.
Version history
- First public release
Related content
![Vulkan logo](https://gpuopen.com/wp-content/uploads/2020/11/vulkan_featured-768x420.png)
Vulkan Memory Allocator v3.1, with many fixes and improvements, is out now!
VMA V3.1 gathers fixes and improvements, mostly GitHub issues/PRs, including improved compatibility with various compilers and GPUs.
![](https://gpuopen.com/wp-content/uploads/2024/04/featured_rga_2_9-dx12_single_shader_compilation_workflow-768x288.png)
DirectX®12 single shader compilation with Radeon™ GPU Analyzer (RGA) v2.9.1
Radeon™ GPU Analyzer v2.9.1 now supports D3D12 shader compilation without requiring a completely defined pipeline state. RGA v2.9.1 is available now.
![](https://gpuopen.com/wp-content/uploads/2024/04/rgp_event_treeview_analyze_pipeline_in_rga-768x337.png)

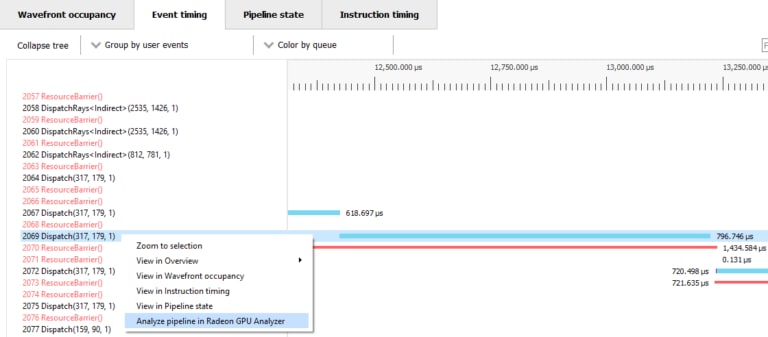

Radeon™ GPU Profiler 2.1 adds interoperability with Radeon™ GPU Analyzer (and more)!
