AMD FidelityFX™ Super Resolution (FSR) is our open source, high-quality solution for producing high resolution frames from lower resolution inputs.
It uses a collection of cutting-edge algorithms with a particular emphasis on creating high-quality edges, giving large performance improvements compared to rendering at native resolution directly. FSR enables “practical performance” for costly render operations, such as hardware ray tracing.
Supports:
- DirectX®12.
- DirectX®11.
- Vulkan®.
you'll need to head over to our dedicated FSR 3 page instead!
Download the latest version v1.0:
Download the latest version v1.1
This release includes:
- Now part of AMD FidelityFX SDK.
- Combined FSR 1 and FSR 2 samples into one sample for the AMD FidelityFX SDK.
Part of the AMD FidelityFX™ SDK
![AMD FidelityFX SDK components](https://gpuopen.com/wp-content/uploads/2023/06/FFX_SDK_banner-1024x570.png)
Xbox developer?
An example use of AMD FidelityFX Super Resolution exists within the Xbox Game Development Kit samples.
![xbox](https://gpuopen.com/wp-content/uploads/2021/07/xbox-800px.png)
Features
![FSR Super Resolution](https://gpuopen.com/wp-content/uploads/2021/05/fsr-super-resolution.png)
Super Resolution
![FSR Cross Platform](https://gpuopen.com/wp-content/uploads/2021/05/fsr-crossplatform.png)
Cross-platform
![FSR Open Source](https://gpuopen.com/wp-content/uploads/2021/05/fsr-opensource.png)
Open source
![FSR Easy to Integrate](https://gpuopen.com/wp-content/uploads/2021/05/fsr-easy-to-integrate.png)
Easy to integrate
![FSR Highly Optimized](https://gpuopen.com/wp-content/uploads/2021/05/fsr-highly-optimized.png)
Highly optimized
Super Resolution
- Major framerate boosts combined with high-quality, high-resolution graphics!
- Four different quality modes proposed: Ultra Quality, Quality, Balanced, and Performance.
Cross-platform
- FSR is not limited to the latest GPU architectures only! It runs on a large variety of GPUs.
- Unreal Engine 4 patch available.
- Unity integration available from the beta branch of Unity 2021.2 HDRP.
- Optimized sample provided in Xbox GDKX.
Open source
- Provided on GPUOpen under an MIT license.
Easy to integrate
- Full shader source code provided for a smooth and flexible integration.
- Wide API support for DirectX®12, Vulkan®, and DirectX®11!
- FSR can be ported onto multiple platforms without restriction.
Highly optimized
- FSR is hand-optimized for great performance across a wide variety of GPUs1.
How it works
AMD FidelityFX Super Resolution is a spatial upscaler: it works by taking the current anti-aliased frame and upscaling it to display resolution without relying on other data such as frame history or motion vectors.

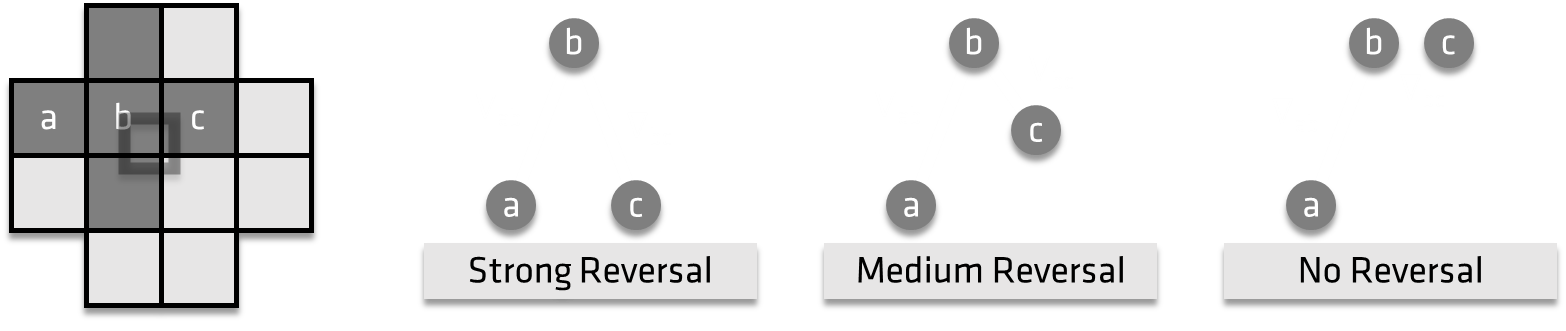

At the heart of FSR is a cutting-edge algorithm that detects and recreates high-resolution edges from the source image. Those high-resolution edges are a critical element required for turning the current frame into a “super resolution” image.
FSR is composed of two main passes:
- An upscaling pass called EASU (Edge-Adaptive Spatial Upsampling) that also performs edge reconstruction. In this pass the input frame is analyzed and the main part of the algorithm detects gradient reversals – essentially looking at how neighboring gradients differ – from a set of input pixels. The intensity of the gradient reversals defines the weights to apply to the reconstructed pixels at display resolution.
- A sharpening pass called RCAS (Robust Contrast-Adaptive Sharpening) that extracts pixel detail in the upscaled image.
FSR also comes with helper functions for color space conversions, dithering, and tone mapping to assist with integrating it into common rendering pipelines used with today’s games.
![](https://gpuopen.com/wp-content/uploads/2021/06/fsr-diagram-dark-nobold.png)
![](https://gpuopen.com/wp-content/uploads/2021/06/fsr-diagram-light-nobold.png)

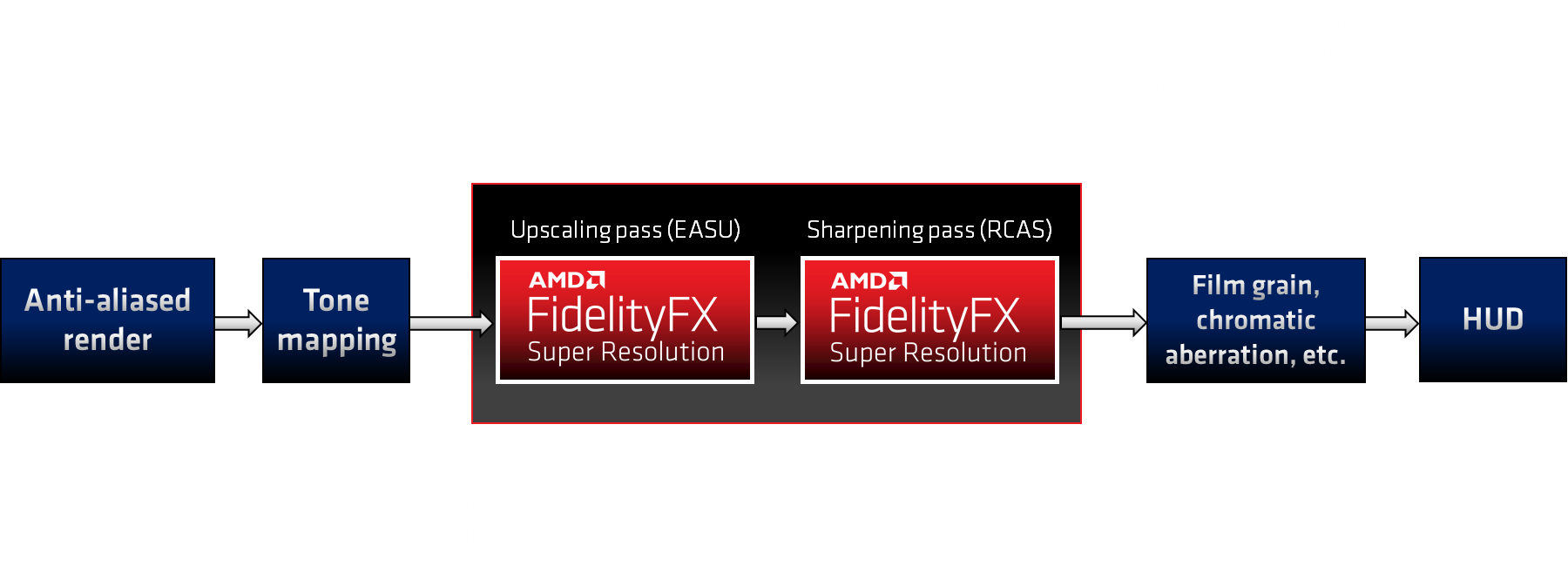

Where to integrate AMD FidelityFX Super Resolution in a frame?
AMD FidelityFX Super Resolution passes work best in perceptual color space, and should therefore be integrated after tone mapping. Passes that introduce noise or other high-frequency visual components to the scene should be rendered after upscaling to avoid those noisy components being amplified.
![](https://gpuopen.com/wp-content/uploads/2021/07/fsr_where_in_frame_source_light.png)
![](https://gpuopen.com/wp-content/uploads/2021/07/fsr_where_in_frame_source-dk.png)
AMD FidelityFX CLI
Want to quickly try out AMD FidelityFX Super Resolution (FSR) or AMD FidelityFX Contrast Adaptive Sharpening (CAS)?
You can use our new command-line tool AMD FidelityFX CLI, which lets you test FSR or CAS on a screenshot, or any other image.
Comparison
The comparison images below are a 1200 x 700px crop taken from a 4K frame from our FSR sample provided via our Cauldron framework. The images are JPEGs saved with minimal compression to keep the file sizes lower to support faster load times.
Native resolution is on the left, and FSR Ultra Quality on the right.
![Native Resolution](jpg/fsr_cauldron_demo_cropped_native1363.jpg)
![FidelityFX Super Resolution Ultra Quality Mode](jpg/fsr_cauldron_demo_cropped_ultraquality1363.jpg)

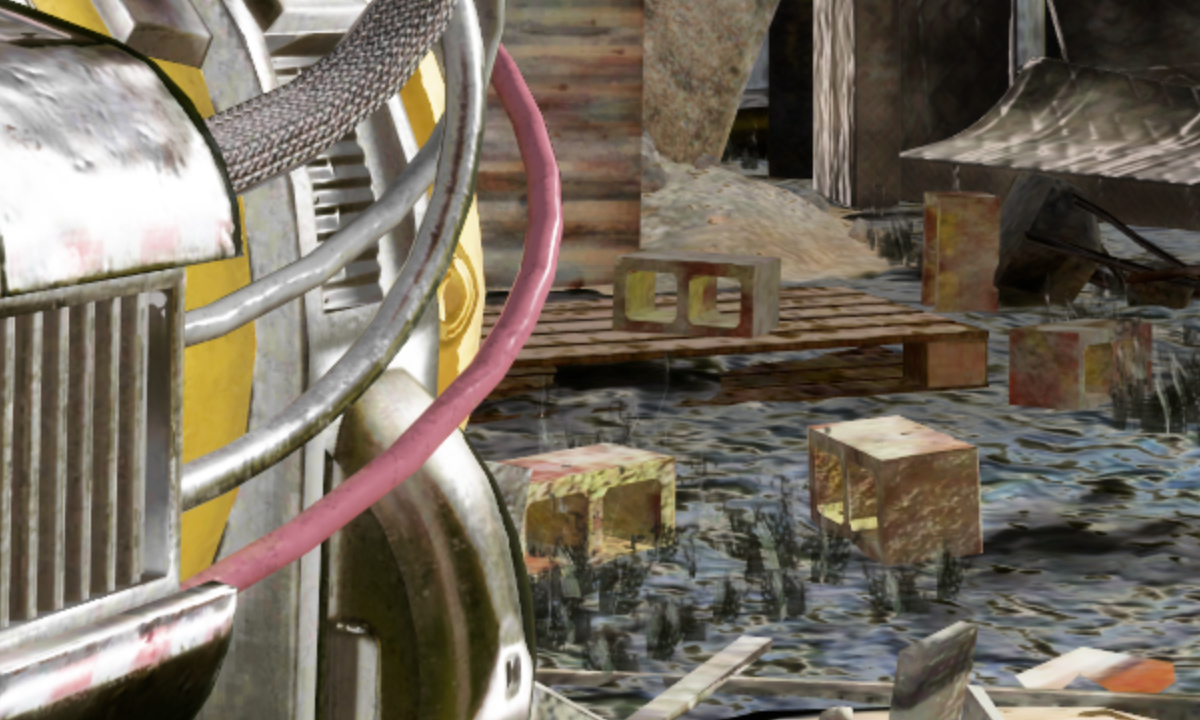

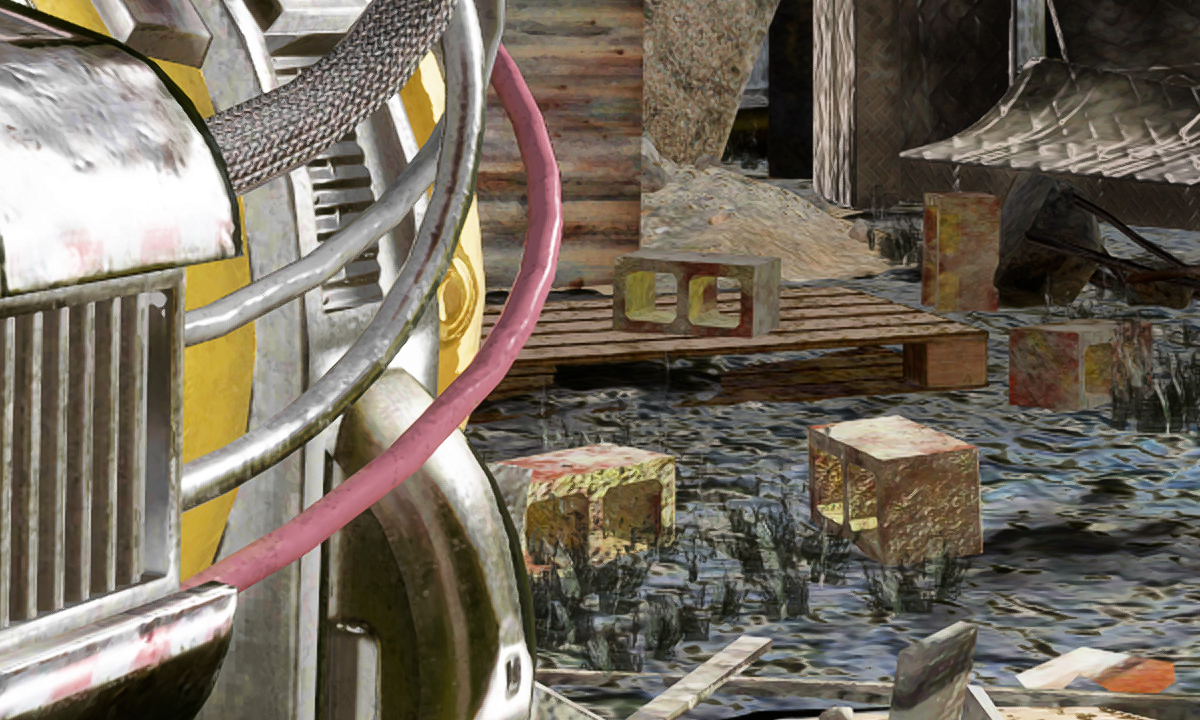

This next set of images are the same crop as above, but this time comparing bilinear upscaling (left) with FSR Performance (right).
![Bilinear upscaling](jpg/fsr_cauldron_demo_cropped_bilinear1363.jpg)
![FidelityFX Super Resolution Performance Mode](jpg/fsr_cauldron_demo_cropped_performance1363.jpg)

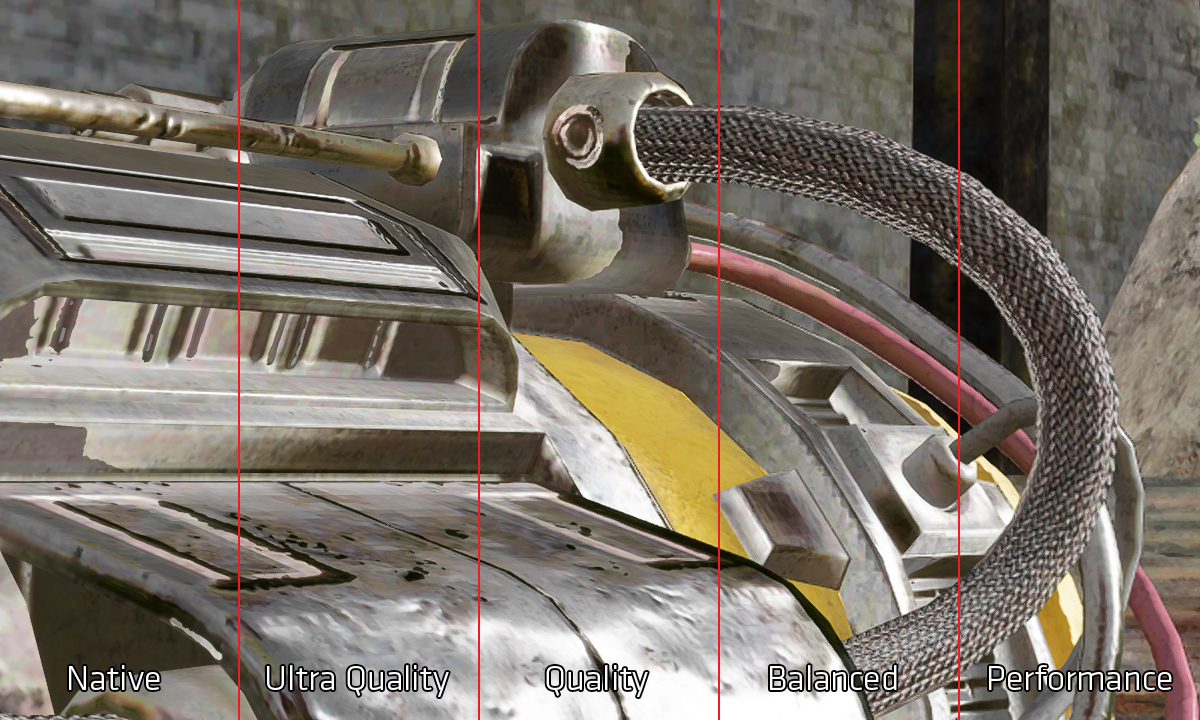

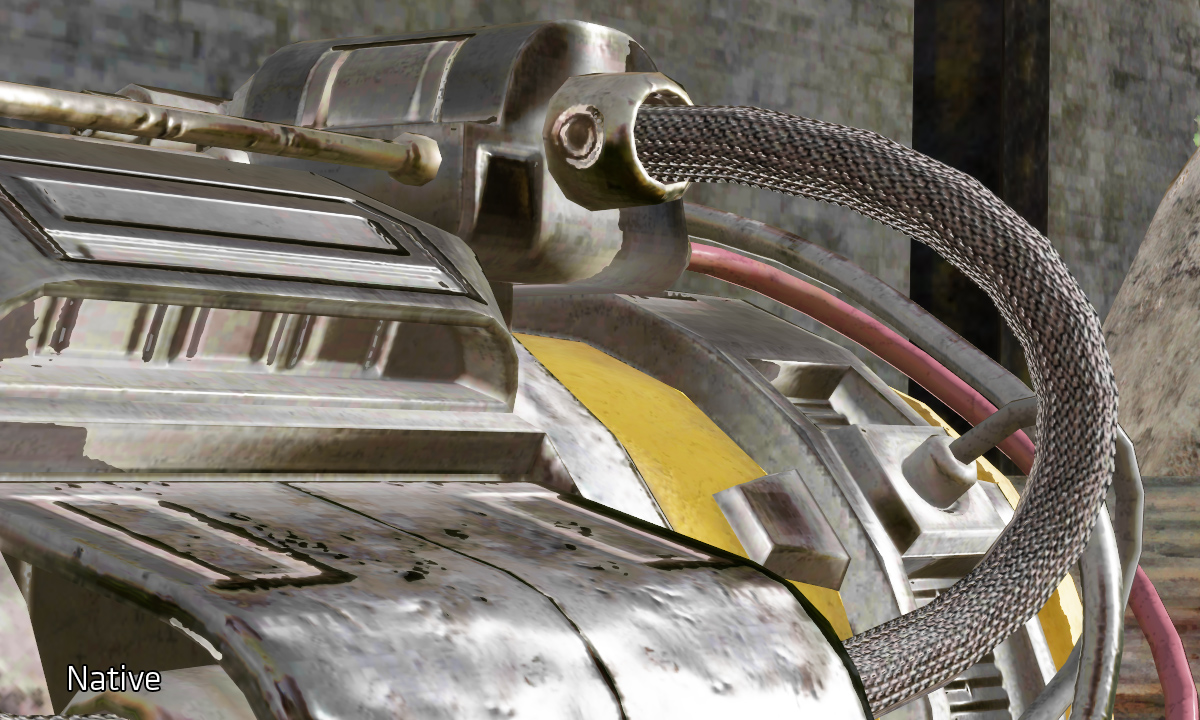

Here is a different crop, with native, and then all four FSR quality settings shown.
To make it easier to see the differences, we’ve applied the native resolution image over the top (left) so you can see how FSR quality modes (right) compare by moving the slider.
![Native](jpg/fsr_cauldron_demo_slices_with_nativelabel1363.jpg)
![Quality modes](jpg/fsr_cauldron_demo_slices1363.jpg)
AMD FidelityFX Super Resolution quality modes
AMD FidelityFX Super Resolution exposes different quality modes that varies the amount of scaling to apply to the source image, depending on the quality/performance ratio desired.
In addition to fixed scaling, FSR may be used in “arbitrary scaling” mode, whereby any area scale factor between 1x and 4x is supported. This mode is typically used for Dynamic Resolution Scaling, whereby source resolution is determined by a fixed performance budget to achieve a minimum frame rate.
FSR quality mode |
Description |
Scale factor |
Input resolution |
Output resolution |
---|---|---|---|---|
Ultra Quality |
Ultra Quality mode produces an image with quality virtually indistinguishable from native rendering. It should be selected when the highest quality is desired. | 1.3x per dimension (1.69x area scale) (77% screen resolution) |
1477 x 831 1970 x 1108 2646 x 1108 2954 x 1662 |
1920 x 1080 2560 x 1440 3440 x 1440 3840 x 2160 |
Quality |
Quality mode produces a super resolution image with quality representative of native rendering, with a sizeable performance gain. | 1.5x per dimension (2.25x area scale) (67% screen resolution) |
1280 x 720 1706 x 960 2293 x 960 2560 x 1440 |
1920 x 1080 2560 x 1440 3440 x 1440 3840 x 2160 |
Balanced |
Balanced mode produces a super resolution image approximating native rendering quality, with a major performance gain compared to native. | 1.7x per dimension (2.89x area scale) (59% screen resolution) |
1129 x 635 1506 x 847 2024 x 847 2259 x 1270 |
1920 x 1080 2560 x 1440 3440 x 1440 3840 x 2160 |
Performance |
Performance mode visibly impacts image quality and should only be selected in situations where needing additional performance is critical. | 2.0x per dimension (4x area scale) (50% scale resolution) |
960 x 540 1280 x 720 1720 x 720 1920 x 1080 |
1920 x 1080 2560 x 1440 3440 x 1440 3840 x 2160 |
AMD FidelityFX Super Resolution performance
AMD FidelityFX Super Resolution is hand-optimized for best performance and runs well on a large variety of GPUs. The following table provides some indication of upper performance threshold numbers for the cost of running FSR, measured on different classes of GPUs.
FSR target resolution |
Enthusiast GPUsRADEON™ RX 6800XT, NVIDIA RTX 3080 |
Performance GPUsRADEON™ RX 6700XT, NVIDIA RTX 3060 Ti |
Mainstream GPUsRADEON™ RX 5700XT, NVIDIA RTX 2060 SUPER |
---|---|---|---|
4KUltra Quality Quality Balanced Performance |
0.40 ms or less | 0.60 ms or less | 1.0 ms or less |
1440pUltra Quality Quality Balanced Performance |
0.20 ms or less | 0.30 ms or less | 0.50 ms or less |
Motherboard: MSI X570-A Pro
Operating System: Windows 10 Pro 64-bit Version 20H2 (OS Build 19042.928)
AMD Driver Version: 21.20-210624n
NVIDIA Driver Version: 471.11
CPU: AMD Ryzen 9 5900X @ 3.70 GHz
Chipset: Ryzen SOC
System RAM: 16.0 GB G.Skill DDR4-3600 CL16-16-16-36
![Unreal Engine](https://gpuopen.com/wp-content/uploads/2022/11/UE_Logo_horizontal_unreal-engine_white.png)
Unreal Engine developer?
AMD FidelityFX Super Resolution is now available as a plugin for Unreal Engine 4 at 4.27.1 or higher, or as a feature patch you can apply for Unreal Engine 4.26.
Our Unreal Engine Performance Guide is a must-read for all Unreal Engine 4 developers.
We’ve recently updated it to include a comprehensive section dedicated to upscaling in Unreal Engine, including FSR.
![Unity](https://gpuopen.com/wp-content/uploads/2021/10/U_Logo_Black_RGB.png)
![Unity Logo](https://gpuopen.com/wp-content/uploads/2021/10/U_Logo_White_RGB.png)
Unity developer?
AMD FidelityFX Super Resolution is now available in both the Unity HDRP and URP.
Unity 2021.2 includes built-in FSR support. Unity developers can use FSR by enabling dynamic resolution in HDRP assets and Cameras, and then selecting “FidelityFX Super Resolution 1.0” under the “Upscale filter” option.
FSR can also now be integrated into Unity URP projects with our new patch, which you can download below.
We are thrilled that AMD FidelityFX Super Resolution is supported by all these developers
![Partners using FSR](https://gpuopen.com/wp-content/uploads/2021/06/fsrl0gos.jpg)
And still there’s more! You can find further developer experiences with AMD FidelityFX shared on our testimonials page
